POWERING THE FUTURE, HARNESSING THE UNIQUE PROPERTIES OF DIAMOND

Among the most versatile supermaterials on earth, and the hardest known to man, diamonds are uniquely suited to advance technological discovery. At WD, our research and development is centered around breakthrough diamond applications to solve the world's most critical challenges. Our focus is on providing cutting-edge diamond solutions to reduce reliance on fossil fuels, power quantum technologies, accelerate telecommunications reinvention, and democratize clean air and water.
The future's most important supermaterial.
Made from pure carbon atoms tetrahedrally bonded in a crystalline structure, diamond is the only material — natural or engineered — to deliver unique physical and atomic properties that can be used to solve key technical challenges across industries.
HIGH STRENGTH
THERMAL EXPANSION
LOW FRICTION COEFFICIIENT
SOUND PROPAGATION
EXTREME HARDNESS
THERMAL CONDUCTIVITY
CHEMICAL STABILITY
BROAD OPTICAL TRANSPARENCY

WE ARE USHERING IN THE DIAMOND AGE, SOMETHING RE: PEOPLE AND PLANET

EV
Reducing the reliance on fossil fuels and democratizing access to new electric technology

QUANTUM
Developing device solutions that power efficient, scalable quantum computing

TELECOM
SOMETHING FURTHER ABOUT TELECOM SOLUTIONS AND 5G

STERILIZATION
Creating effective, lifesaving systems that expand availability of clean air and purified water

High-quality CVD diamond material.
Update to INTRINSIC, DOPED overview, followed by final, strong CTA re: reaching out to discuss needs
ADD COPY RE: MAJOR ADVANCES IN large FORM FACTOR – that was the previous limiting element.

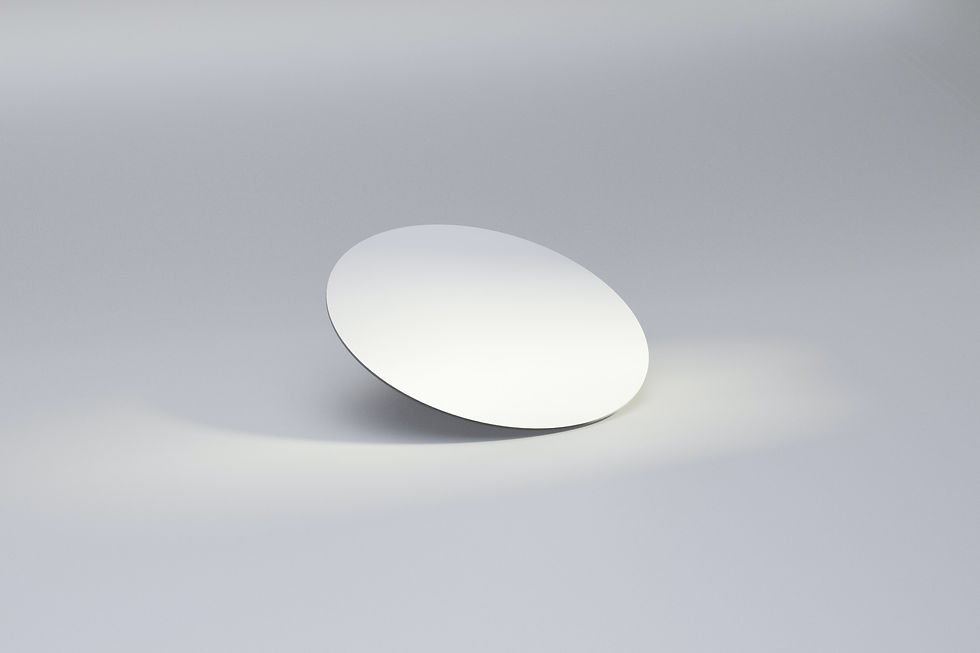

Our diamond wafers are highly customizable according to application, with a range of edge lengths and a variety of surface orientations and preparations.
01_ Optical Grade
Semi- to fully-polished windows and discs for use in extreme environments, prisms, radiation detectors and lasing applications
02_ Nitrogen Vacancy
Highly polished wafers offering minimal or tailored nitrogen incorporation, for use in research and envisioned Quantum 2.0 technologies
03_ Conductive
Boron-doped, rough-cut to semi-polished wafers for use in nano-indentors, among other conductive diamond applications
04_ Standard Grade
Semi- to- fully-polished wafers of high-quality material, for use in a variety of applications including high-power electronics

REMOVE - INDUSTRIAL AND SCIENTIFIC APPLICATION DIAMONDS
We are proud to offer sustainability rated, leading-edge laboratory grown diamond products for use in high-impact research, industrial and commercial applications.


DIAMOND ANVILS - REMOVE
We provide laser-cut, precision-polished Type IIA CVD diamond anvils for use in high-pressure scientific experiments.
01_ Optical Grade
Anvils suitable for IR, X-ray, ruby fluorescence and some Raman applications, with a nitrogen level of <0.5 ppm -
02_ Multi-Carat
Large anvils for Neutron and X-ray applications, with a nitrogen level ~5 ppm
03_ Ultra-Low Fluorescence
ULF anvils suitable for high performance Raman spectroscopy
04_ Speciality
High-pressure anvil repair services and Diamond Anvil Cell devices
INDUSTRIAL DIAMONDS - REMOVE
Our industrial diamond material offers exceptional advantages across a wide spectrum of applications.
01_ Standard Grade
Semi- to fully-polished diamond blanks ideal for the cutting and forming of materials
02_ Device Grade
Interface-free blanks used in high-precision mechanical tooling, such as water jet orifices and wire drawing dies –- ANYTHING TO OFFER HER FOR INTRINSIC?
