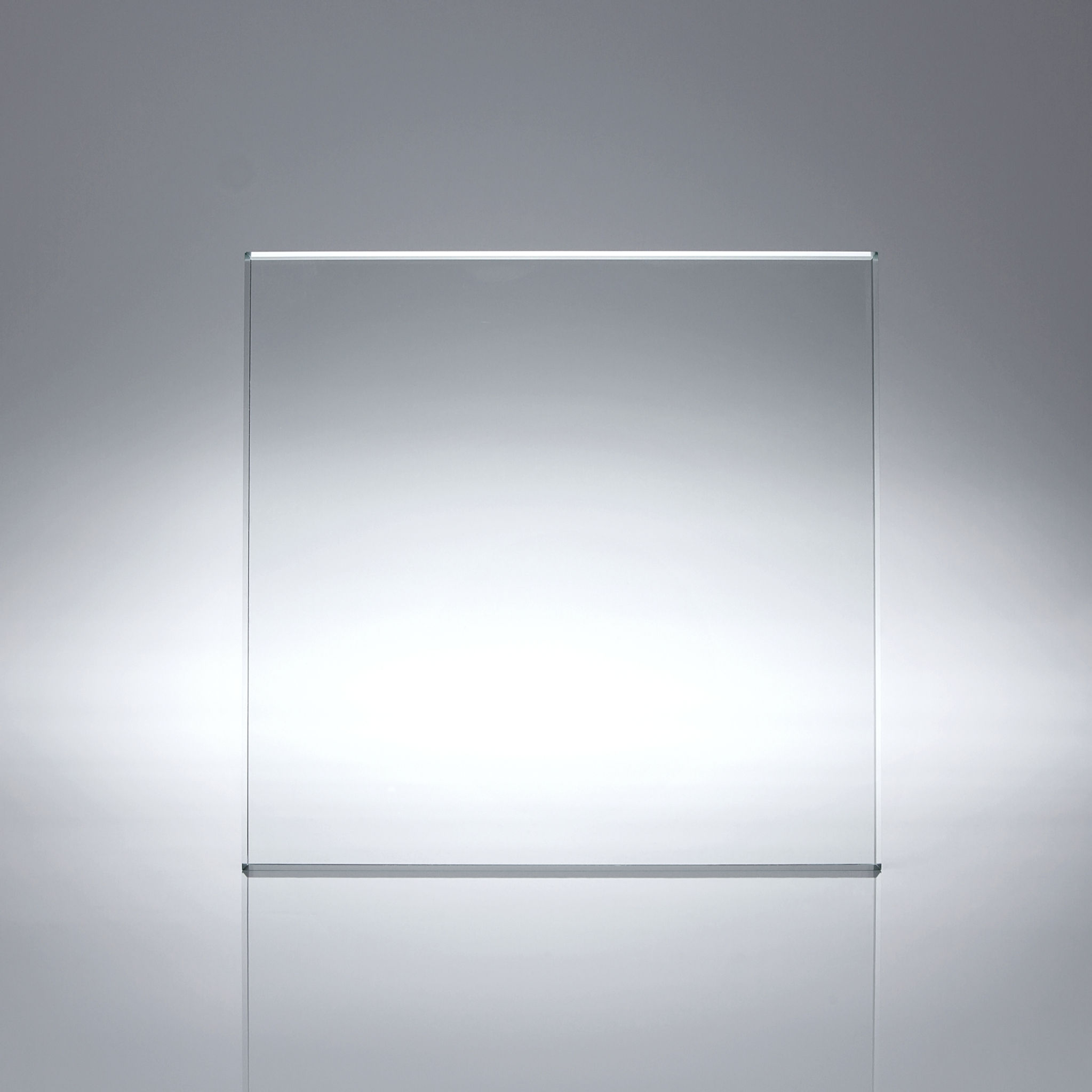

Intrinsic SCD CVD Diamond
Ultra-pure low-stress diamond substrates in laser-cut, semi-polished or fine-polished form, for use in various sensitive thermal and optical applications, including synchrotrons.
PRODUCT DETAILS
Specification Properties
Thermal Conductivity 2200 W/(m·K) Hardness >8 MPa·m Lattice Constant 3.567 Å Density 3.51 ± 0.01 g/cm3 Refractive Index 2.418 (at 500 nm) 13C Fraction 1.10% Orientation 100 Primary Orientation Dimensions Standard sizing, square and round up to 10mm (length, width), 300 and 500µm thick. Tolerances: X/Y +/- 0.1mm, Z +/- 0.05mm. Up to 25mm custom sizing available (alternative values upon request) Roughness, Ra Laser Cut, Optical Polish (~20nm Ra), Epi-Ready Polish (<2, 5nm Ra) (alternative values upon request) Appearance Clear / White Raman Peak FWHM 1.7cm⁻¹typical at the 1332⁻¹ peak Impurities ppb/ppt P, B, N [no trace impurities identified (resolution limited)]
From $1,900.00Sale Price
